Wheaton Bottle Top Dispenser - Calibrex Digital 520

• Superior Chemical Resistance
• Long-Lasting Performance Stability
• Simple Construction - No Tool for Disassembling
• Instant Volume Setting
• In-Lab Calibration
• Autoclavable at 121°C/250°F While Fully Assembled

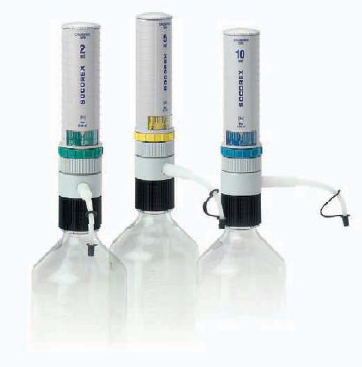

Designed for performance handling of liquids from a large variety of bottles and flasks, the Calibrex 520 dispensers combine the latest in dosing technology, high-tech materials and ergonomic design.  Manufactured and tested to fully comply with current regulations.  Three color-coded 520 models with adjustable volumes ranging from 0.25-2 mL, 1-5 mL and 1-10 mL.  32 mm screw thread and three adapters are included with the unit (28, 38, and 45 mm) and a 300 mm feed tube.




Friendly Digital Volume Setting

Fast and precise volume adjustment.  Efficient click-stop mechanism prevents unwanted alteration.  Large display is easy to read; the window adjusts to desired side of instrument body.




Optimized Working Position

The instrument rotates 360° for adequate positioning on top of the bottle.






In-Lab Calibration

Calibrex dispensers are factory calibrated and can be easily re-calibrated by means of a dedicated adjustment screw.

---
